Equipment and Capabilities
The machines on our floor and the limits they hold. Every spec on every service page traces back to this one.
On the shop floor
06 photosThe Equipment Behind Every Quote
Cutting
Four Ways to Cut
Picked by thickness, edge, and material.
Materials
See cutting services→Mild steelStainless steelAluminumCopperBrassNon metals

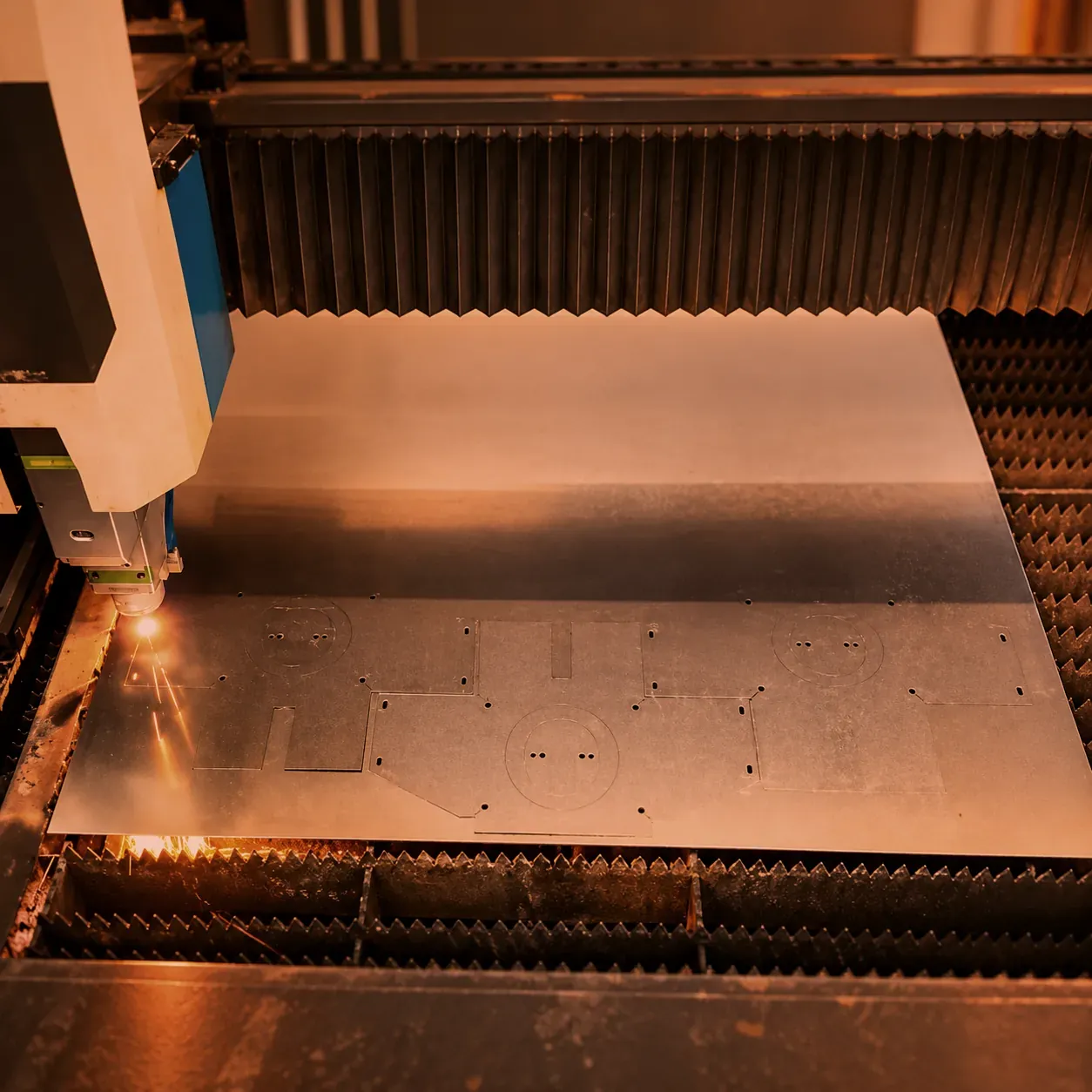

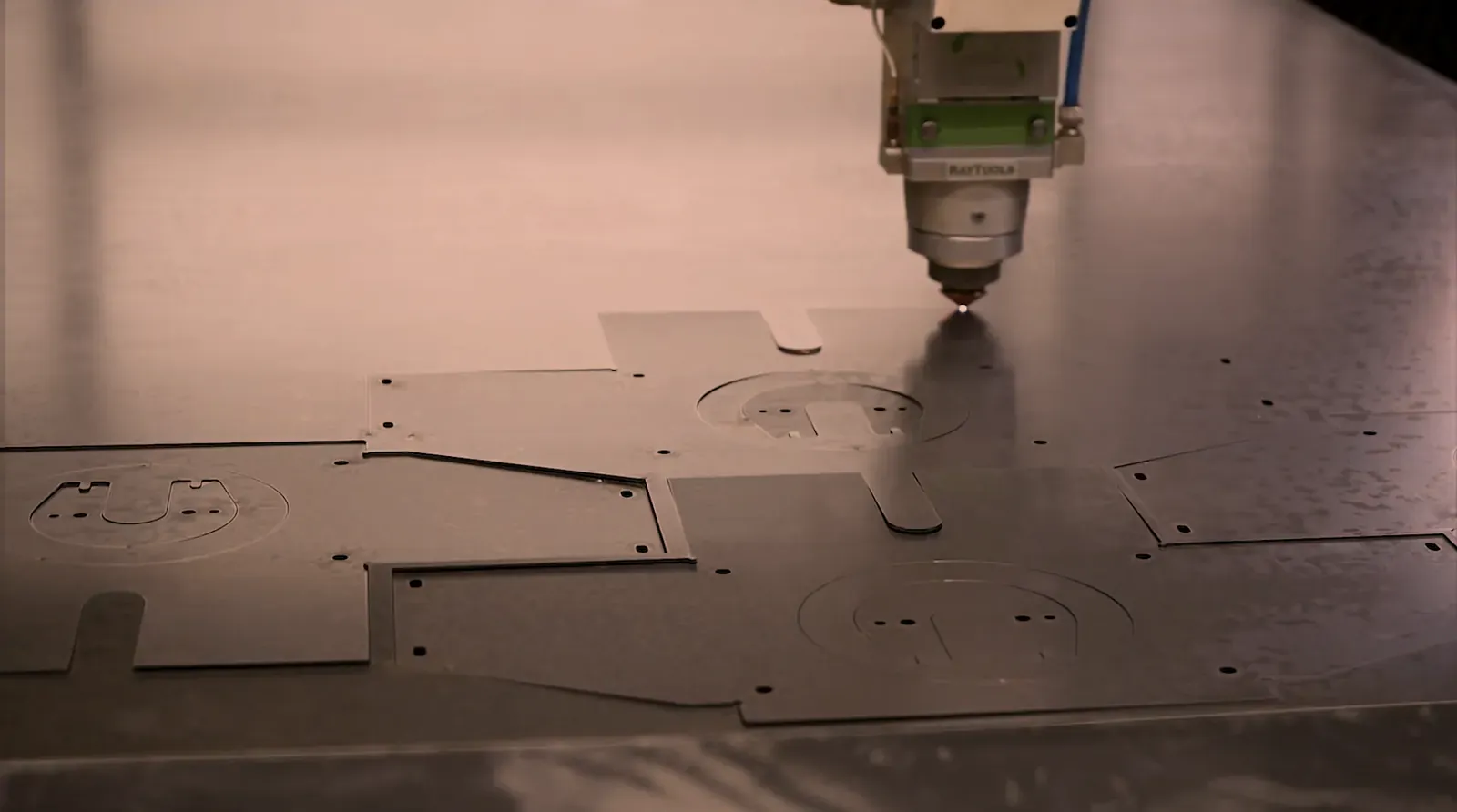

- 01CNC Fiber Laser→Up to 1 inch mild steel, 3/4 inch stainless steel, and 5/8 inch aluminum. Plus or minus .005 inch on laser work.
- 02CNC Plasma→Thicker metals up to 3/4 inch.
- 03Waterjet→Cold cutting for heat sensitive materials.

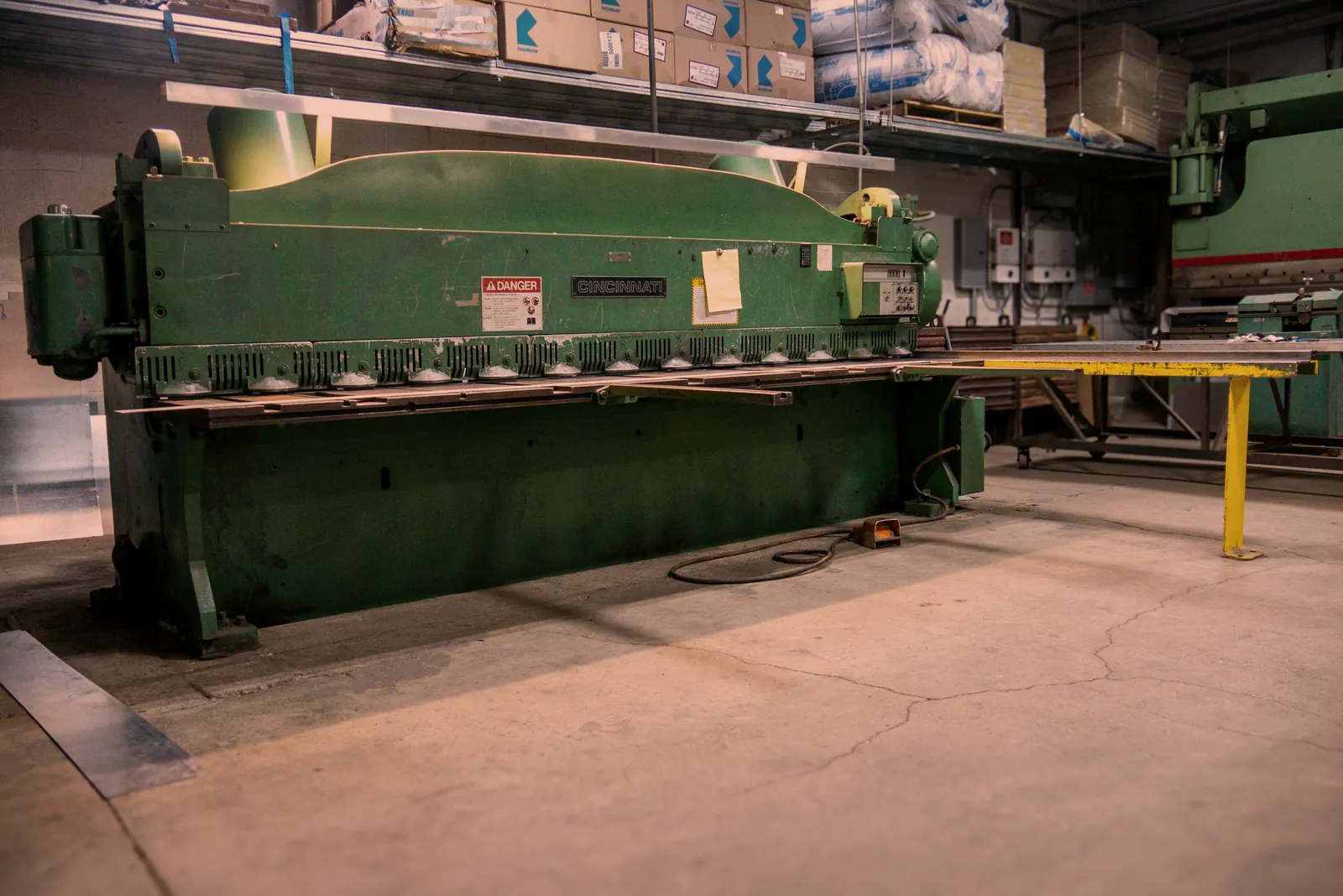

- 04Shear, 12 foot Cincinnati→Clean, straight cuts up to 1/4 inch mild steel and 1/8 inch stainless steel.

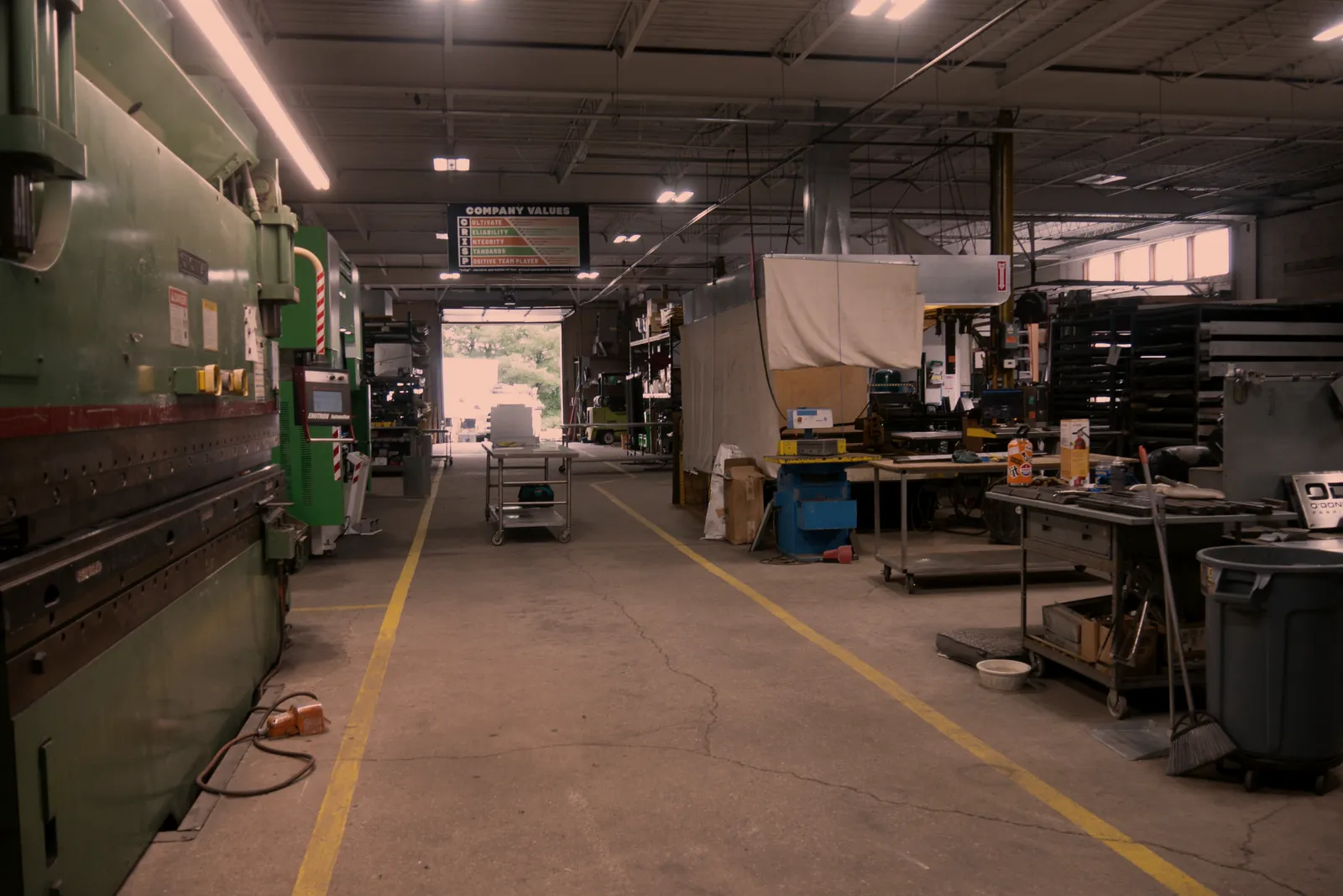

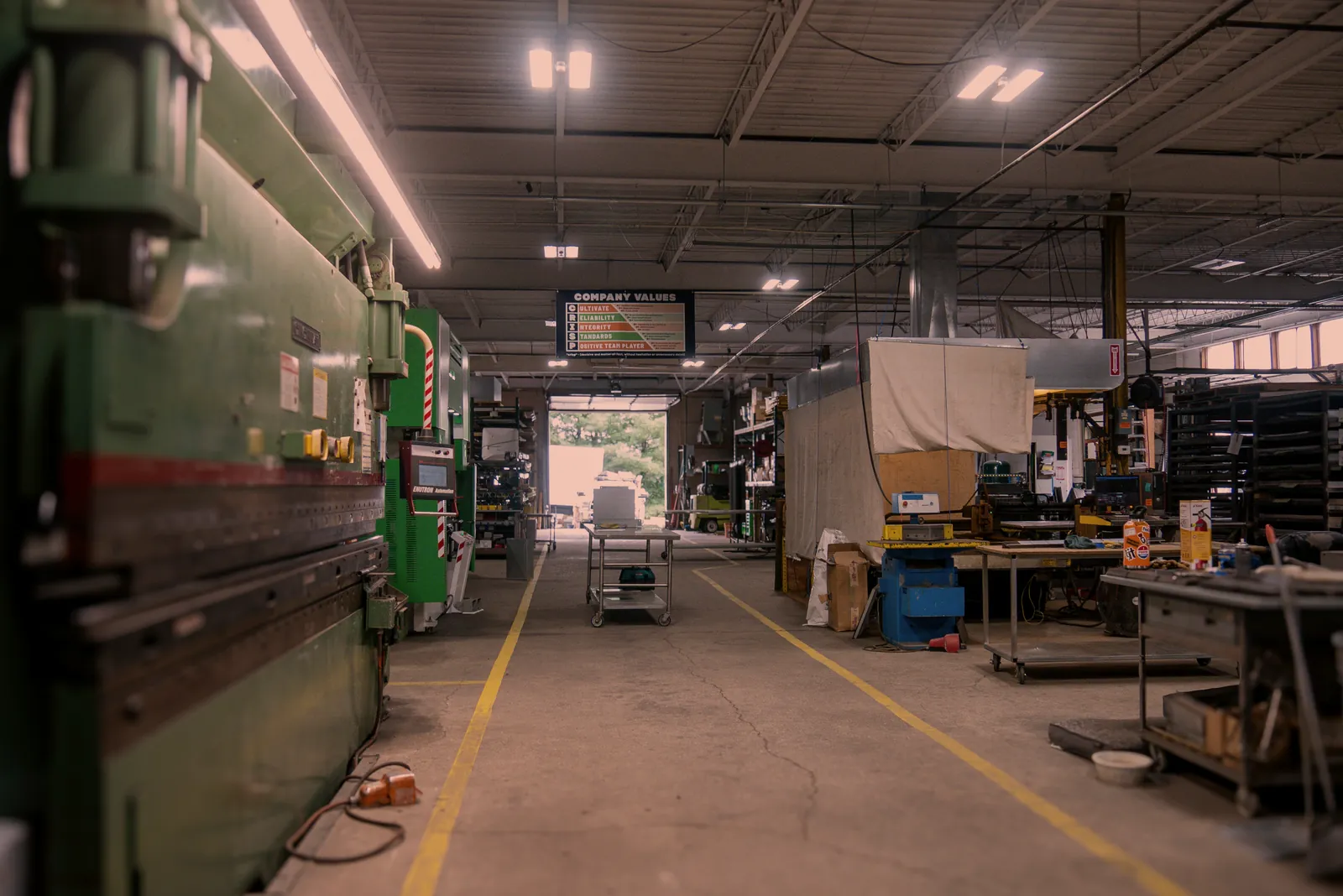

- 01Press Brake, 12 foot Cincinnati→175 ton capacity, bending up to 1/8 inch stainless steel, mild steel, and aluminum.
- 02Sheet Rolling→Up to 46 inch wide and 1/8 inch thick for curved panels and cylindrical parts.
- 03Punch Press and Notcher→Forming and hole punching for custom parts and enclosures.
Welding
Welding and Assembly
Joined and fastened in house by welders qualified to AWS procedures, with PEM hardware seated on insertion presses.

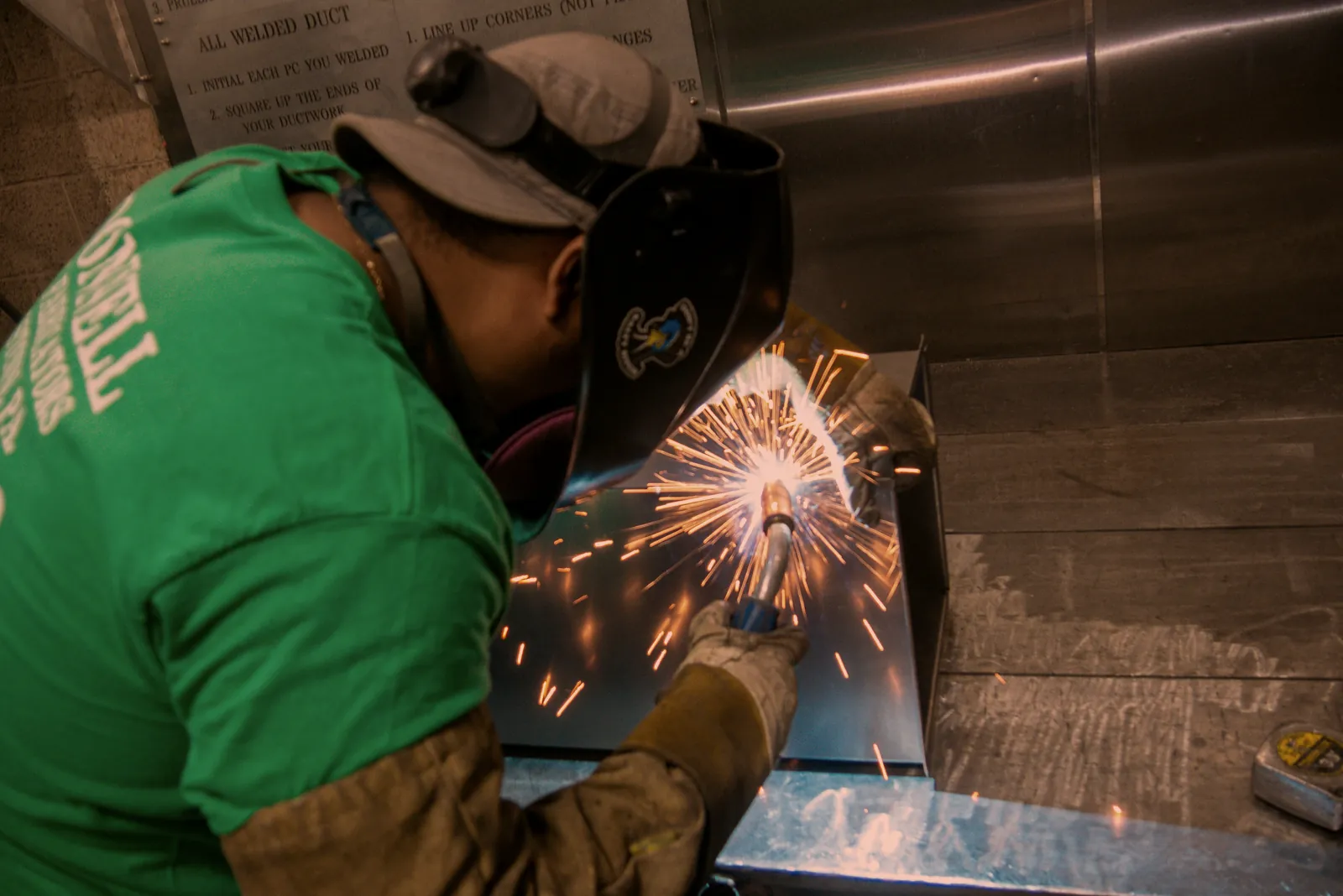

See welding services→- 01MIG, TIG, and Stick Welding→Three processes, in stainless steel, mild steel, and aluminum.
- 02Hardware Insertion→PEM fasteners, studs, nuts, and standoffs seated with insertion presses.
- 01Powder Coating→Durable, corrosion resistant coatings for industrial and commercial parts.
- 02Grinding, Blending, and PolishingSmooth, even finishes.
- 03Deburring and Edge RoundingSharp edges removed for safety and fit.
Process
How an Order Runs
- 01QuoteSend drawings (PDF, DXF, DWG, or STEP), quantity, material, and finish. We return price and lead time.
- 02Purchase orderYour PO or signed quote confirms the job.
- 03FabricationEach process runs in the order the part requires.
- 04InspectionParts are checked against the drawing before they leave the shop.
- 05DeliveryPacking slip and PO reference with every shipment, material certs on request. Delivery across the tristate, shipping beyond it quoted case by case.
Get a quote
Request a Quote
Have a drawing? We will come back with price and lead time.
